Product Categories & Specifications

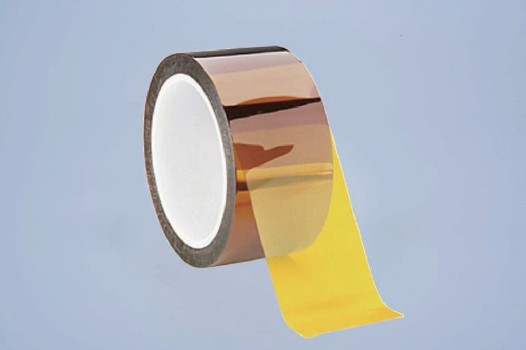

Polyimide Tape
Polyimide tape offers exceptional thermal resistance and is ideal for high-temperature applications such as circuit board protection during wave peak soldering operations. This premium tape provides excellent electrical insulation properties and is widely used in motor insulation, lithium battery assembly, and sensitive electronic components.
| Temperature Resistance |
Thickness |
Initial Tack |
Elongation at Break |
Tensile Strength |
| 250°C/30min |
0.06±0.005mm |
4-6N/25mm |
≥45% |
≥115 N/25mm |
MAIN USAGE:
Suitable for circuit board wave peak soldering shielding, protective gold finger and high-grade electrical insulation, motor insulation, and lithium battery positive and negative ear fixation.

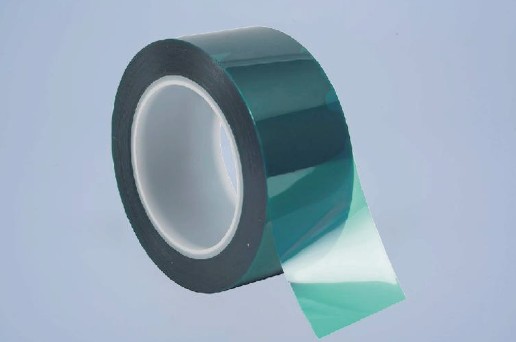

Polyester Tape
Polyester tape combines excellent thermal resistance with superior mechanical properties. It is engineered for applications requiring long-term exposure to elevated temperatures while maintaining strong adhesive bonds. Perfect for coil dressing, cable insulation enhancement, and electrical component assembly.
| Adhesion |
Thickness |
Elongation at Break |
Tensile Strength |
Temperature Resistance |
Withstand Voltage |
| 700±100G/25mm |
0.05±0.005mm |
≥40% |
≥135 N/25mm |
180°C/30min |
5kv |
MAIN USAGE:
Mainly used for cable wire inner core insulation winding enhancement, coil dressing, color tube explosion proof, liquid crystal plasma panel fastening and fixed insulation.

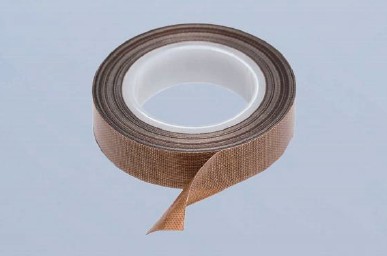

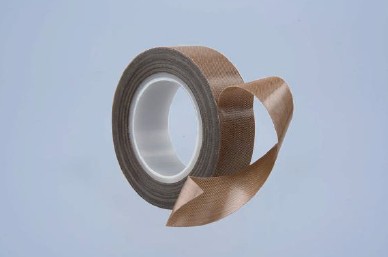

PTFE Tape (Teflon Tape)
PTFE tape delivers extraordinary temperature resistance spanning from -70°C to 260°C, making it ideal for extreme thermal environments. Available in both silicone and hot melt adhesive options, PTFE tape provides exceptional non-stick properties and chemical resistance, perfect for packaging, heat-sealing, and electronic applications.
| Product Code |
Adhesive Type |
Thickness |
Initial Tack |
Tensile Strength |
Temperature Resistance |
| PTFE Tape (Teflon Tape)1 |
Silicone |
130um |
28# ↑ |
40N/in ↑ |
-70-260°C |
| PTFE Tape (Teflon Tape)2 |
Silicone |
130um |
25# ↑ |
70N/in ↑ |
-70-260°C |
MAIN USAGE:
Widely used in packaging, thermoplastic, composite, sealing heat bonding, electronic and electrical industries. Perfect for applications requiring both extreme temperature tolerance and non-stick properties.

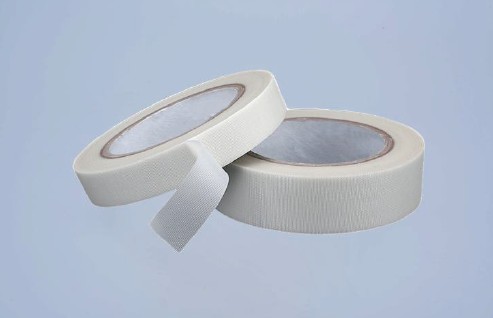

Glass Cloth Tape
Glass cloth tape combines woven glass fiber reinforcement with high-temperature adhesive systems to provide superior strength and durability. With strong adhesion and excellent electrical insulation properties, glass cloth tape is engineered for demanding motor and transformer applications where long-term thermal stability is critical.
| Adhesion |
Temperature Resistance |
Thickness |
Withstand Voltage |
Elongation |
Tensile Strength |
| 6±1N/25mm |
180°C/30min |
0.18±0.005mm |
3kv |
≥5% |
≥380 N/25mm |
MAIN USAGE:
Can withstand 180°C high temperature for a long time with strong adhesion. Widely used in H class motor and transformer coil lead wire dressing, providing reliable thermal and electrical insulation in demanding industrial environments.
